OUR BIG TRAILER THE ATXL

EUROPES ONLY FULL OPTION OFFROAD TENTTRAILER.

As Covid-19 changed the world, we as many others, had no choice to change with it. As people start to change their future plans, we adapted to those plans.
Our first intention was to build the full option big trailer and we did. We still do but 2021 is the year of the small trailer and therefor the ATXL will be on order only with a longer then usual delivery time. Sorry!

Get your trailer now to start exploring the world.

(GIFT) WRAP YOUR TRAILER!

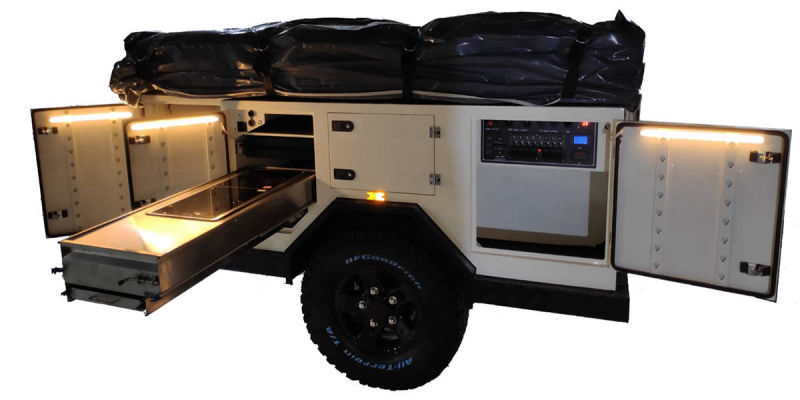

Some details

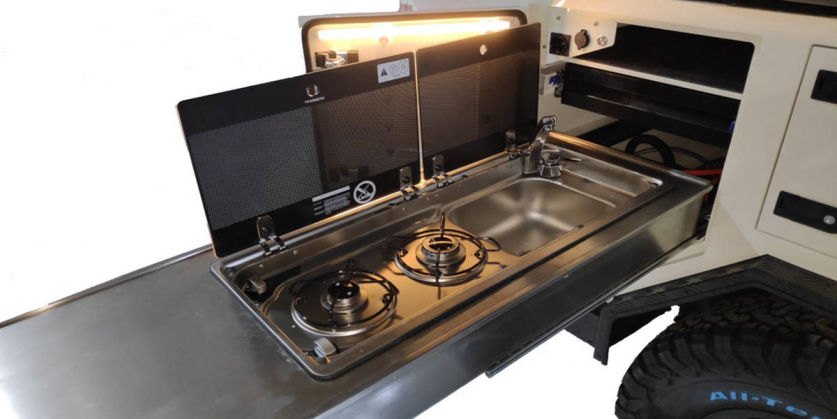

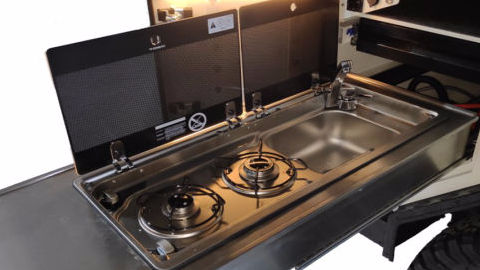

Dometic stove sink combo

Stove sink combo, ready to use. Just pull out the stainless steel kitchen drawer and you can cook or use water.

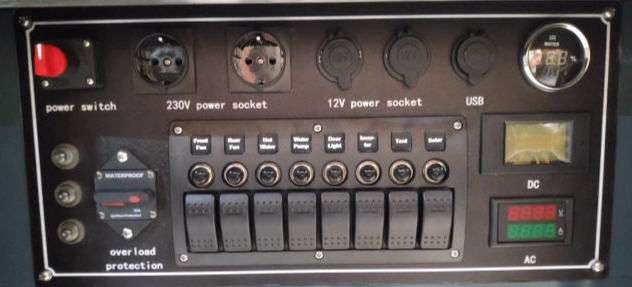

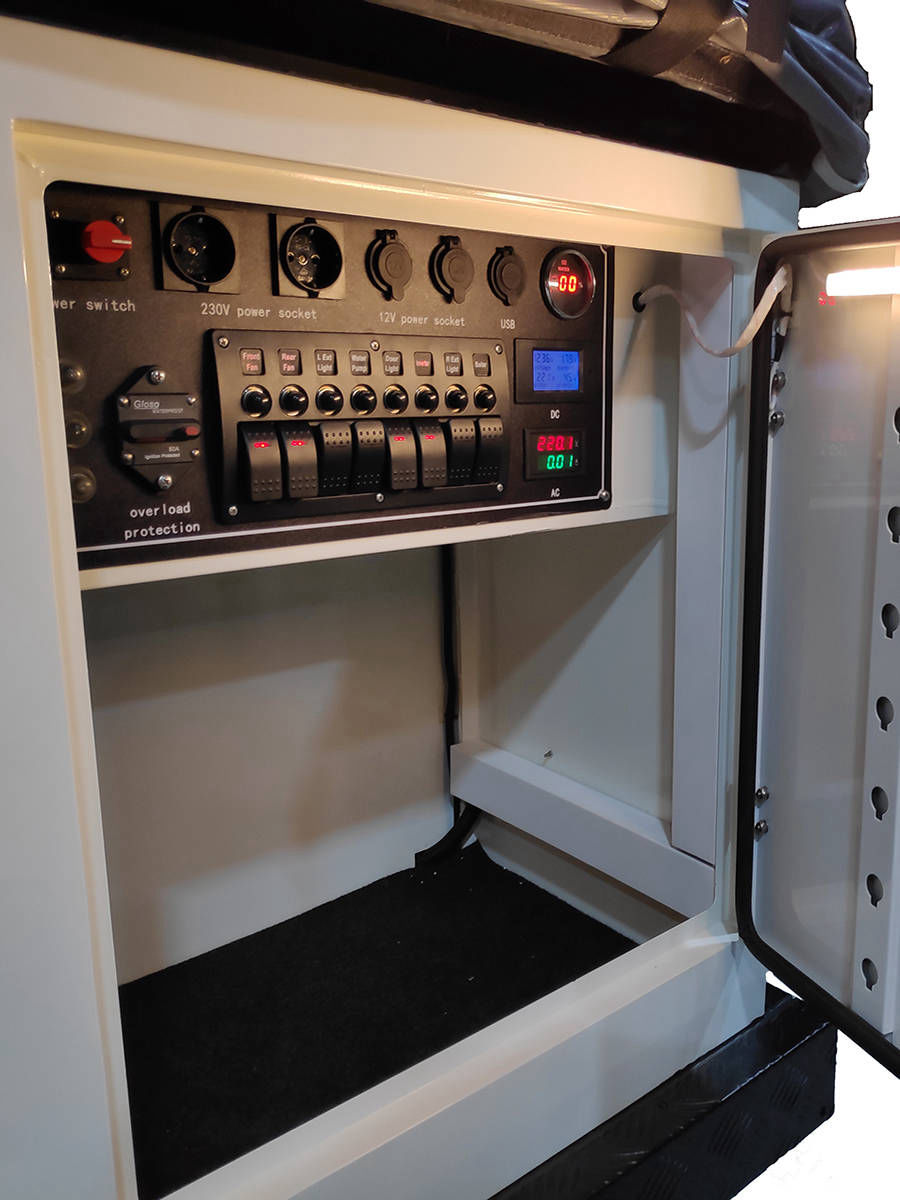

Electrics panel

High and dry on tent side for easy reach. Including 2000 Watt 230 Volt Sinus Inverter, 12 volt sockets and USB charger. Monitoring all systems.

Design and wishes

Our design. Stronger than the competition, all steel body. Optional up to a total weight of 1800 Kg. Leaving lots of room for luggage and other wishes.

GET SOME AIR.

Let's go to the next level.

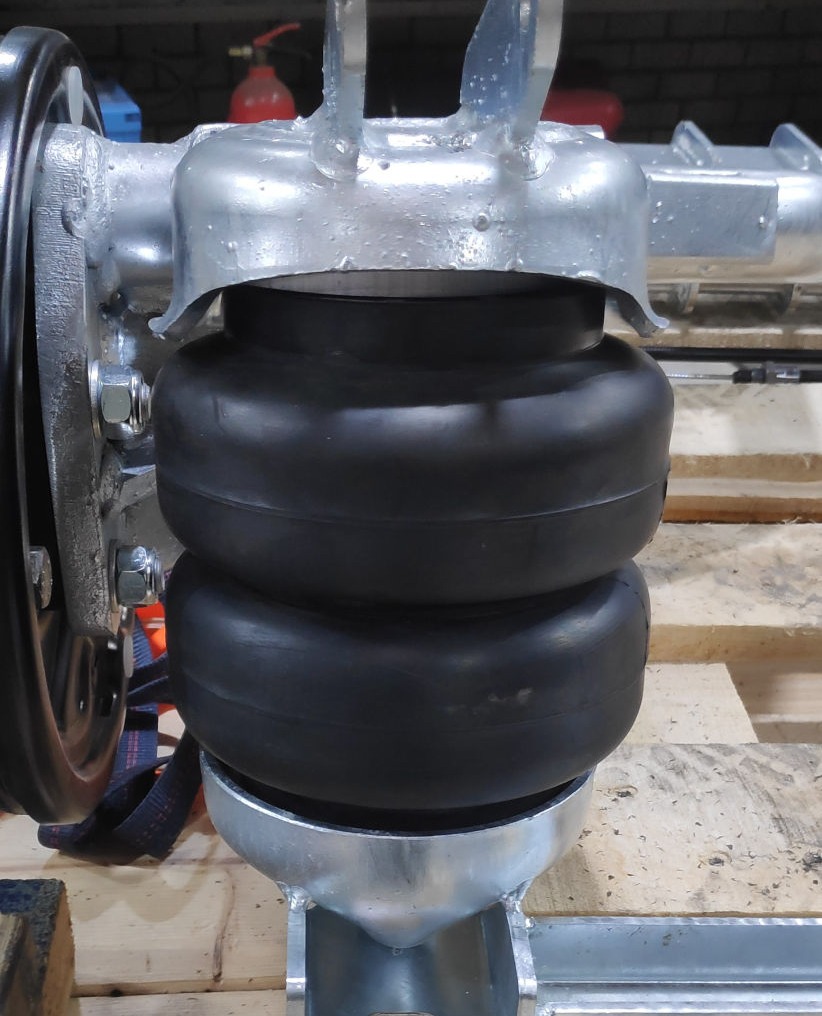

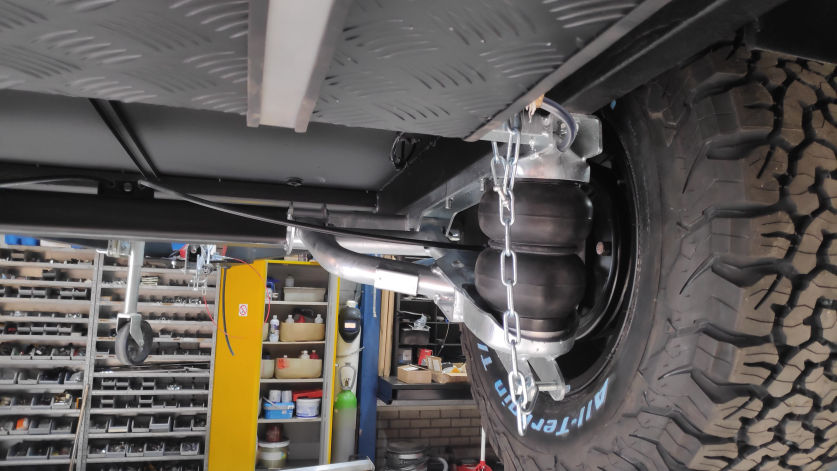

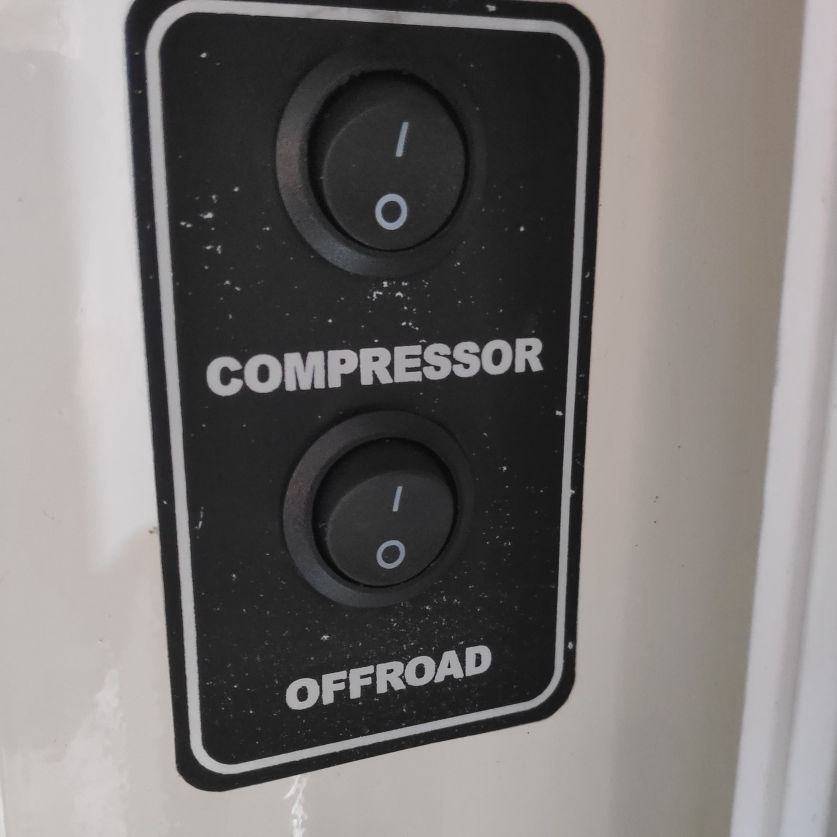

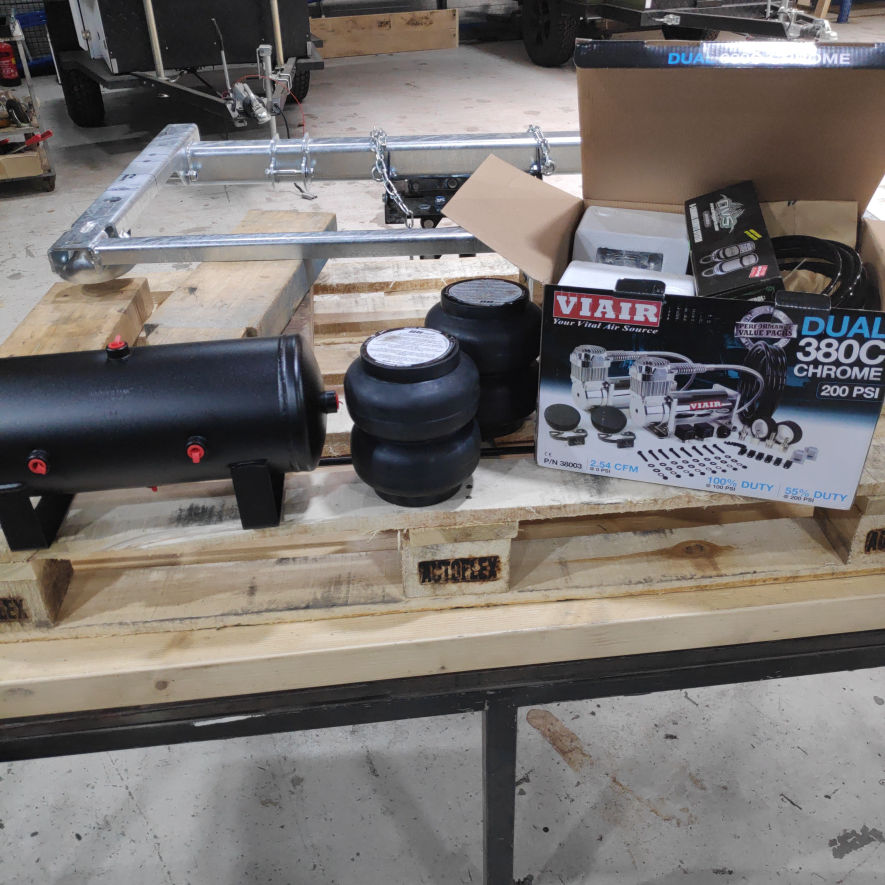

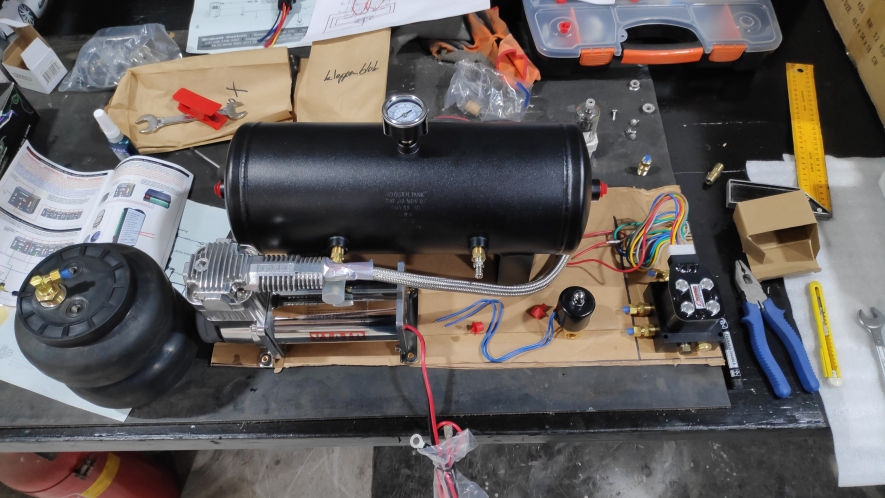

A trailer with independent remote controlled air suspension. A puzzle to set a new level of leveling, ride height and off-road capabilities.

Watch Video

View in Action

The first video of the trailer after the build, see test test run of the air suspension.

Share this Page!

Mobirise

BIGGER IS BETTER

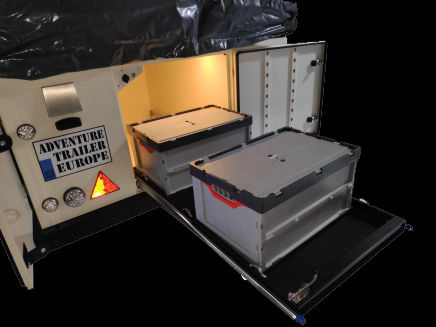

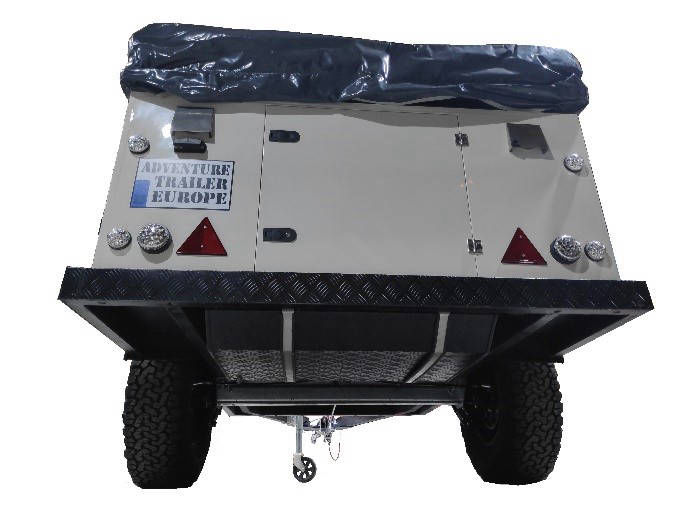

Our ATXL model has got a bigger main drawer in the rear. It grew to 62 by 122 centimetres internal size. Giving the opportunity to fit three standard logistics boxes (60 x 40 cm) in the back in a row and still have room for chairs or another row of three boxes.

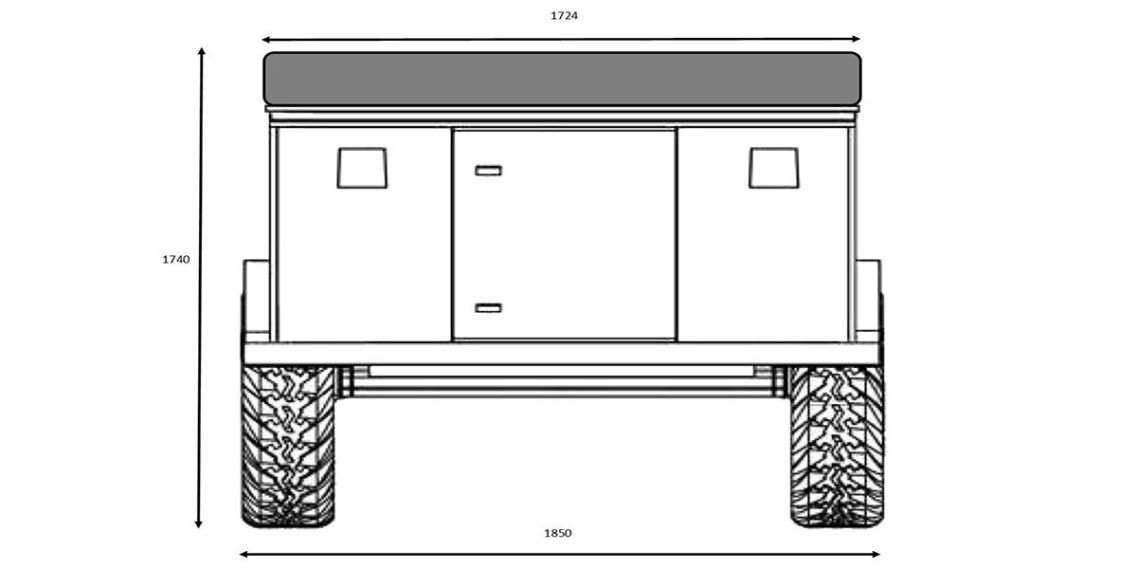

Size does matter.

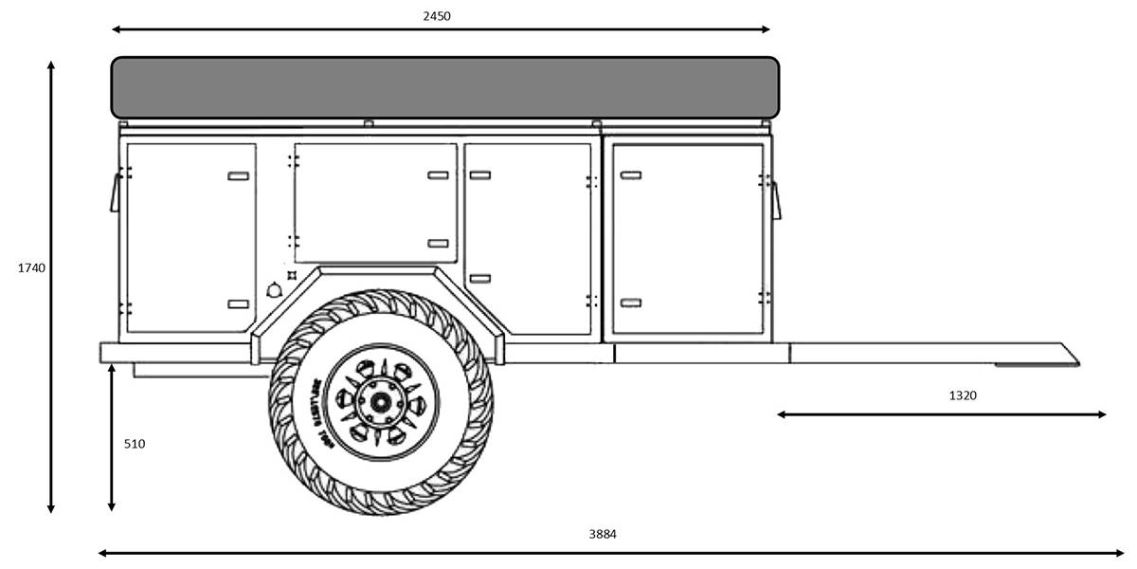

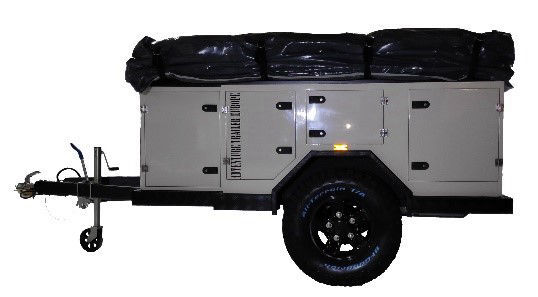

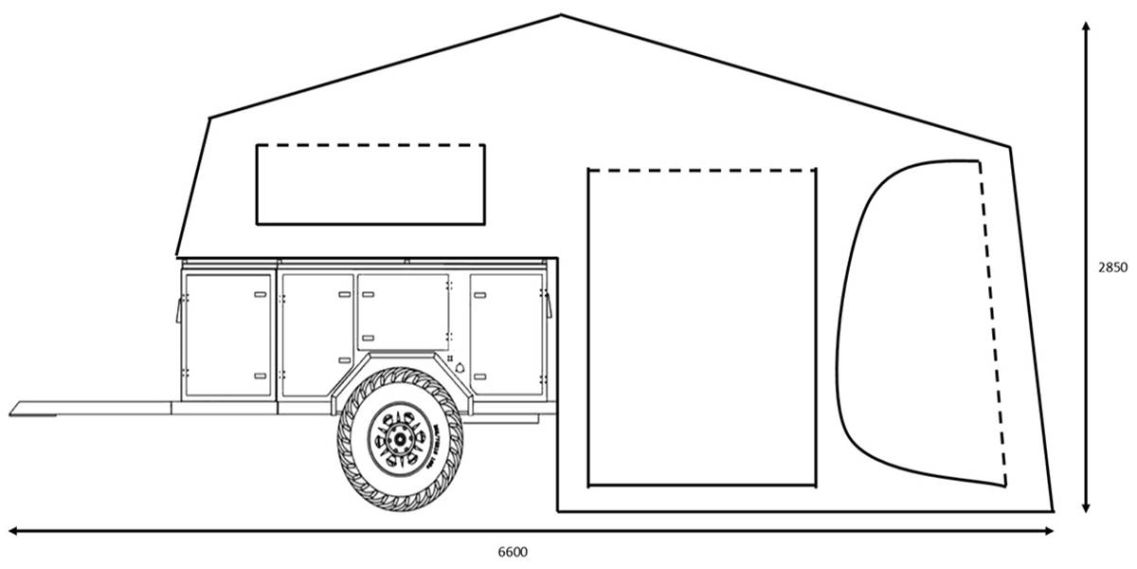

How big is our ATXL Offroad Tent Trailer really?

COLOURS

From 2021 standard colour will be BATTLE SHIP GREY. However almost all other colors will be as optional wrap available for €899
2021 BATTLE SHIP GREY

Ralcode: RAL 7031

2021 Colour wrap

Ralcode: RAL your choice

SOME TRAILER DETAILS.

TRAILER

•Heavy duty off road galvanized chassis frame with one size tube straight from front to back. (100mmx50mmx4mm)
•Side protection, Fenders and stone guard in 5 bar chequer plate.
•Zinc-coated steel plate trailer body then baked enamel.
•Custom Knott axle with mechanical braking system.
•Knott draw-bar.
•Knott shock absorbers.
•German 100 Km/h rating ( if required).
•500 kg Turn and lock type jockey wheel.
•Up to 1900 KG Total weight possible.
•Four fix up and down sliding type stabilizer legs and clamps.
•16’’ alloy 5-stud rims.(Options possible)
•BfGoodrich At 265/75R16 tires.
•Slide out stainless steel kitchen.
•DOMETIC double burner sink combination unit.

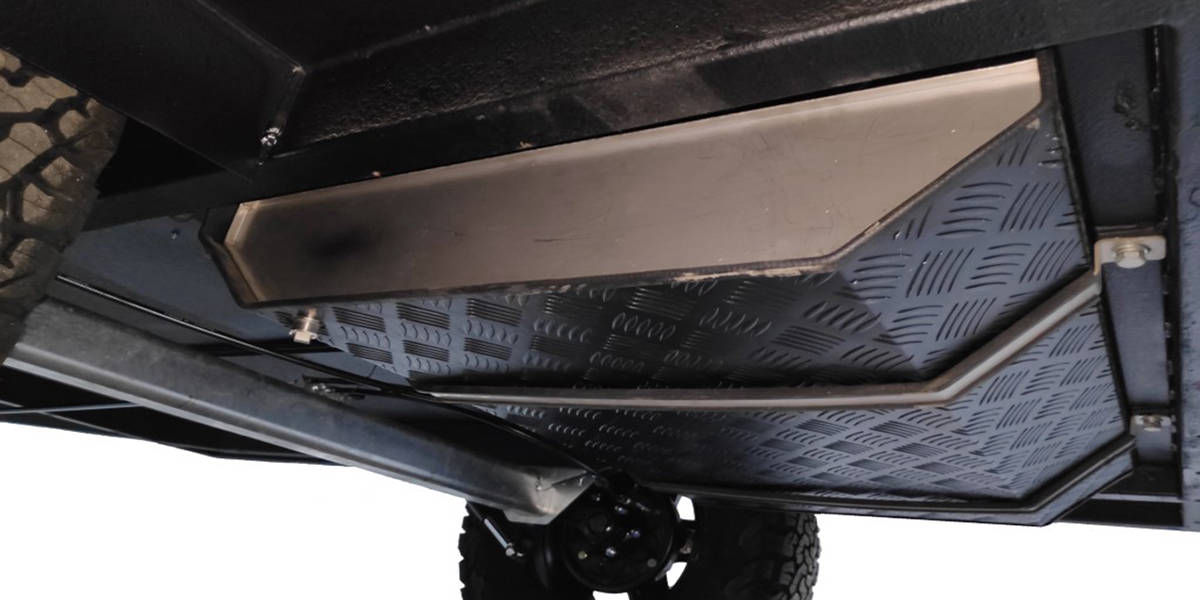

• 90L stainless steel water tank with lockable stainless steel water filler and Aluminium chequerplate protection.
•1 x Jerry can holder and 1 x gas bottle holder removable.

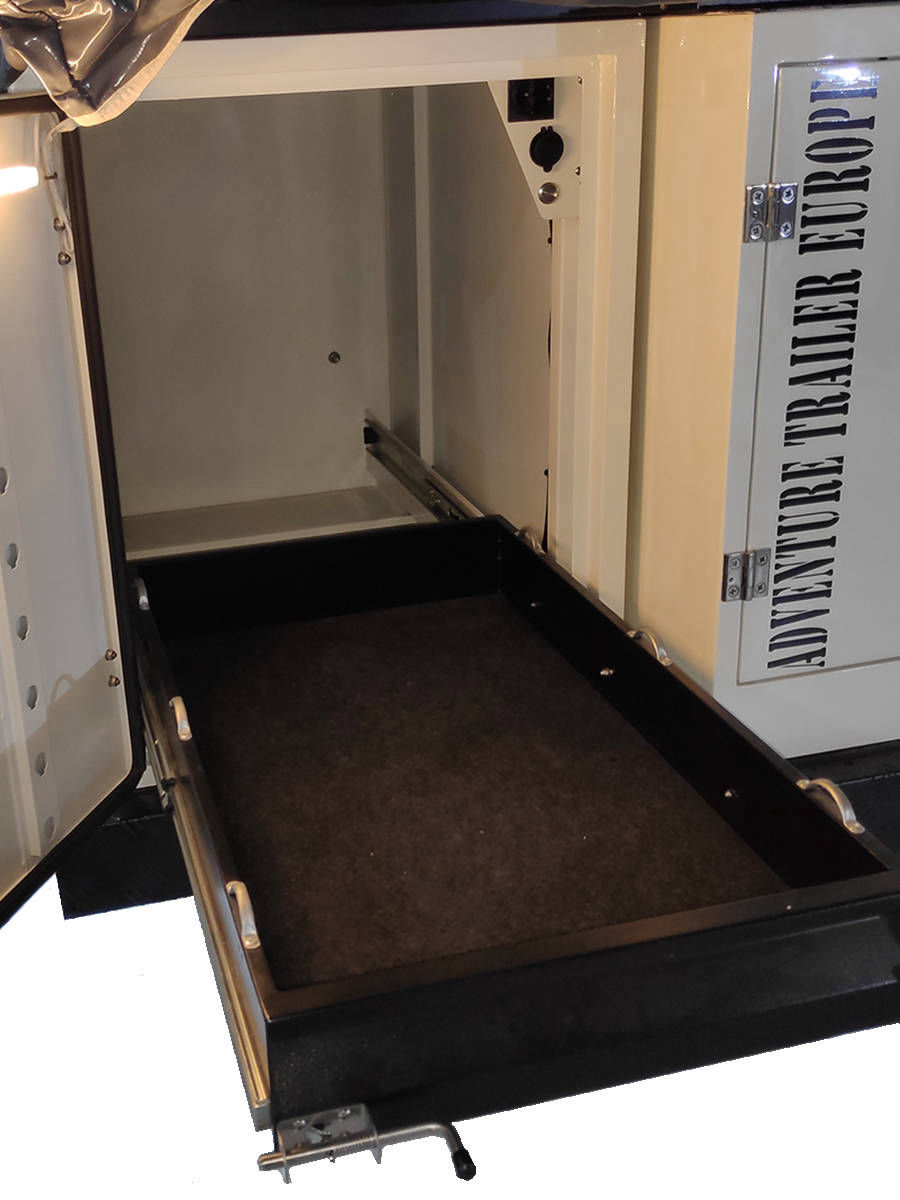

• Drawer for fridge with 12 Volt, 230 Volt sockets and cooling fan.
• Large luggage compartment with drawer in the rear. Holding 3 40 x 60 cm logistics boxes in a row

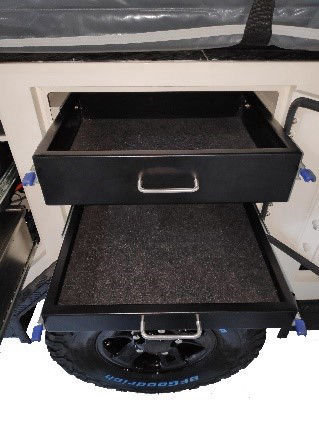

•drawers and compartments for food, bags and clothes, and storage for tent poles.
•All storage compartments are closable and lockable.

TENT

•14OZ canvas, double stitched and extra water proof.

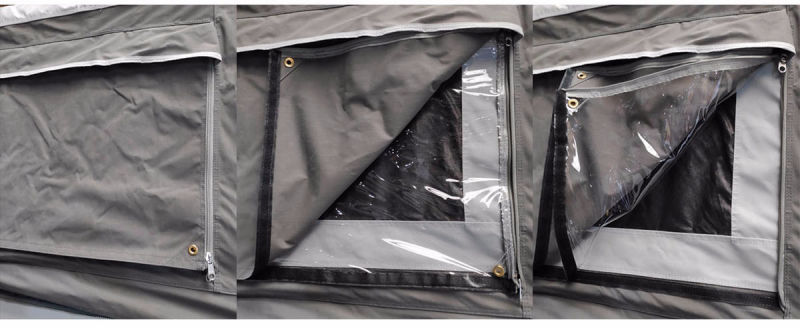

•Midge mesh screens and windows.
•Flipover easy setup.
•One queen size bed (170 cm x 210 cm) with high quality mattress.
•Optional Froli bed dishes

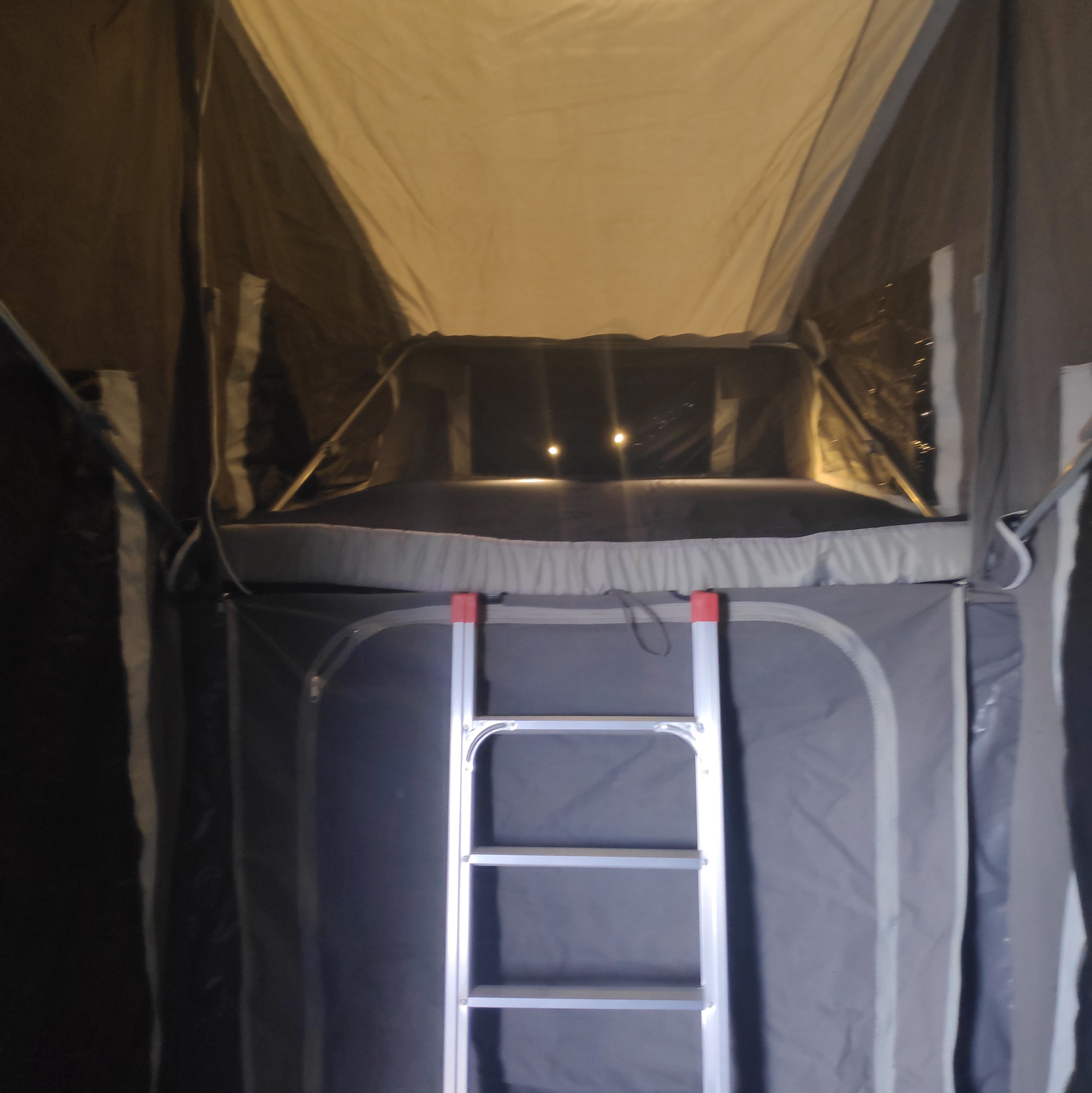

•Inside ladder.
•Inside storage bags/pockets.
•Kitchen storage bags
•One sleep/living room with PE floor Tent.
•Fully enclosed annex kitchen/living room with awning and side walls, and floor.
•Galvanized awning poles, pegs and ropes.
•Tent color is Grey.
•Solar reflective cover on main tent
•Led lighting in tent
•12V sockets
•Usb Charger
***

ELECTRICS

•Deep cycle battery (100A/H).
•Anderson plug for battery charging from the tow vehicle .
•13 pin round plug for lights.
•12V water pump to pump water to kitchen tap.
•Internal LED lights with switches and cigarette sockets.
•Additional LED kitchen light.

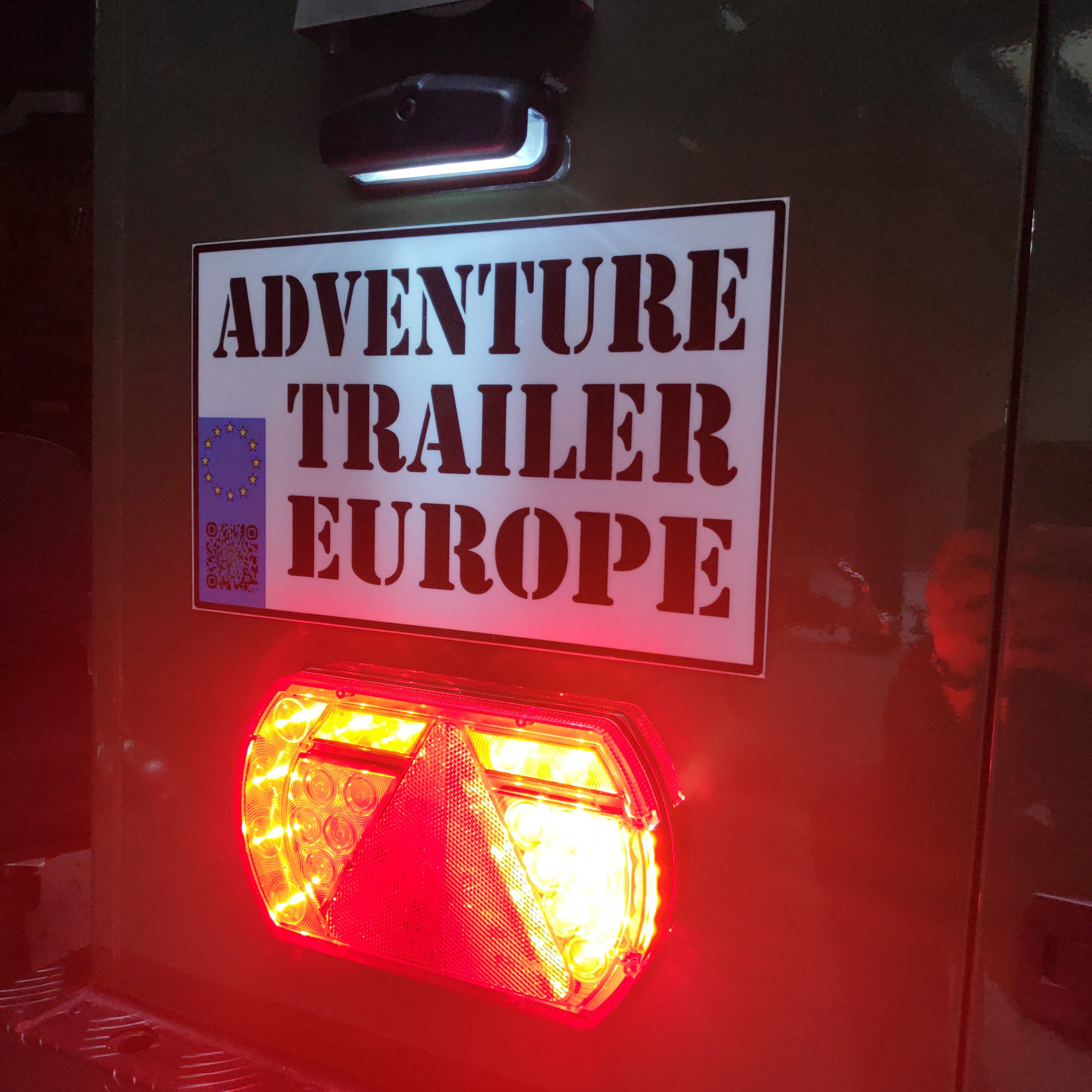

•Modern design LED tail lights
•Optional Land Rover Defender style led lights.
•LED number plate light.
•Overload protection.
•Water sensor and voltage meter.
•2000w Sinus inverter standard.
•Solar power connection (OPTIONAL solar power board).

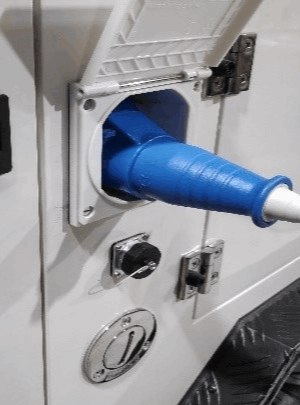

•CEE 230V Power inlet.
•6Ah charging on power in.
•12V, 230V and USB charging sockets in trailer.
•230V FL Fuse switch.

PRICEs.

TRAILER

€21.995

FROM

  • FULL METAL TRAILER
  • GALVANISED  / PAINTED
  • CHEQUERPLATE PROTECTION
  • CANVAS TENT
  • CANVAS ANNEX
  • IN TENT POWER/LIGHTS
  • SUN REFLECTION ROOF
  • STAINLESS STEEL KITCHEN
  • STAINLESS STEEL WATER TANK
  • DOMETIC STOVE/SINK
  • ALL LED LIGHTS
  • 2000 WATT INVERTER
  • 100 AH DEEP CYCLE BATTERY
  • CEE POWER INLET
  • SOLAR PANEL CHARGING
  • EXTERNAL POWER CHARGING
  • KNOTT / CUSTOM AXLE
  • ALU RIMS
  • BFGOODRICH TIRES
OPTIONS

€99

FROM

  • Flexible solar panel € 399
  • BENELIGHT GAS BOTTLE connected € 99,00
  • LAND ROVER DEFENDER WHEEL LUGPATTERN +€ 299 **
  • Froli Spring Mat €449

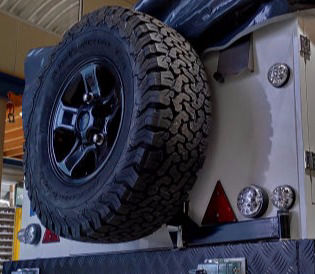

  • Spare wheel carrier (POR)
  • Shipping at a competitive price

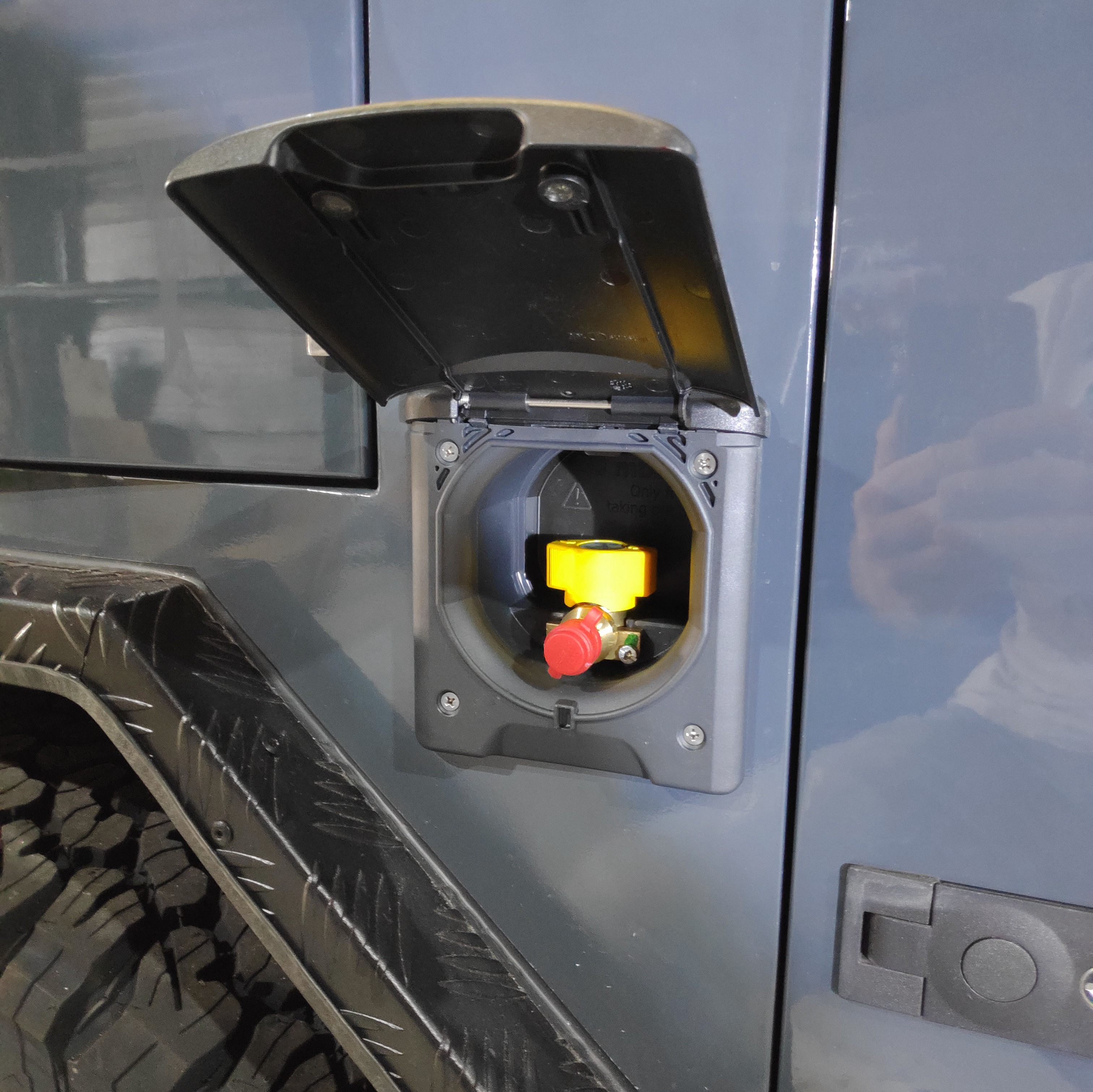

  • External gas connector €299 for single bottle

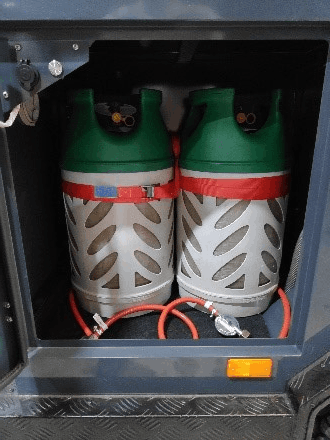

  • Double Gas-bottle holder +€159

  • 150 AH Battery upgrade +€299
  • External shower POR
  • Custom colour wrap €899

OPTIONS

€99

FROM

  • Defender style lights +€ 389,00
  • BF Goodrich AT 265/75R16 Tires +€ 0,00
  • BF Goodrich MT 265/75R16 Tires +€ 40,00
  • Defender style Boost or Sawtooth rims +€249

  • Custom rims and tires POR

  • Fixed lock SCM € 179
  • External double jerrycan/ sandboard Holder with jerrycans/ sandboards €499
  • Air suspension €2199
  • Special requests and more contact us.
  • (Prices are upgrade prices and include installation)


Follow Us!

*     **     ***

*

All prices can be changed without prior notice. ( Off course not after final sales agreement) All offers valid for two weeks.

**

Land Rover Wheel lug patter 5 x 165,1 with 16 x 1,5 mm bolts. It is possible to provide your own rims (with certificate) and tires, to match your Land Rover. We can supply these at cost price. However total diameter can not be more then 80 cm, to fit and pass the roadworthy certification.

***

We hold the right to change and improve the products with out prior notice. If we think this will improve the final product.
If you have ordered an trailer these improvements will however not change the final price.

POR

Price on request.
