We have set the goal to build the best value for money offroad tent trailer available in Europe.  Why an offroad tent trailer, to give freedom, the possibility to go anywhere any time any way. No restrictions, go on and offroad. Fast and easy setup. Accommodation for two to four people. Lots off storage, limited self-supporting, own water, electricity, build in kitchen, build in lights. High quality, Custom build parts. The works.

So where does one start,
Step 1 make a list with wishes, consult potential buyers inform our self on their wishes.
Step 2 the design. For months we have been working on a design fit for our market, fulfilling our needs, our wishes. An off-road camping   trailer for the European market.

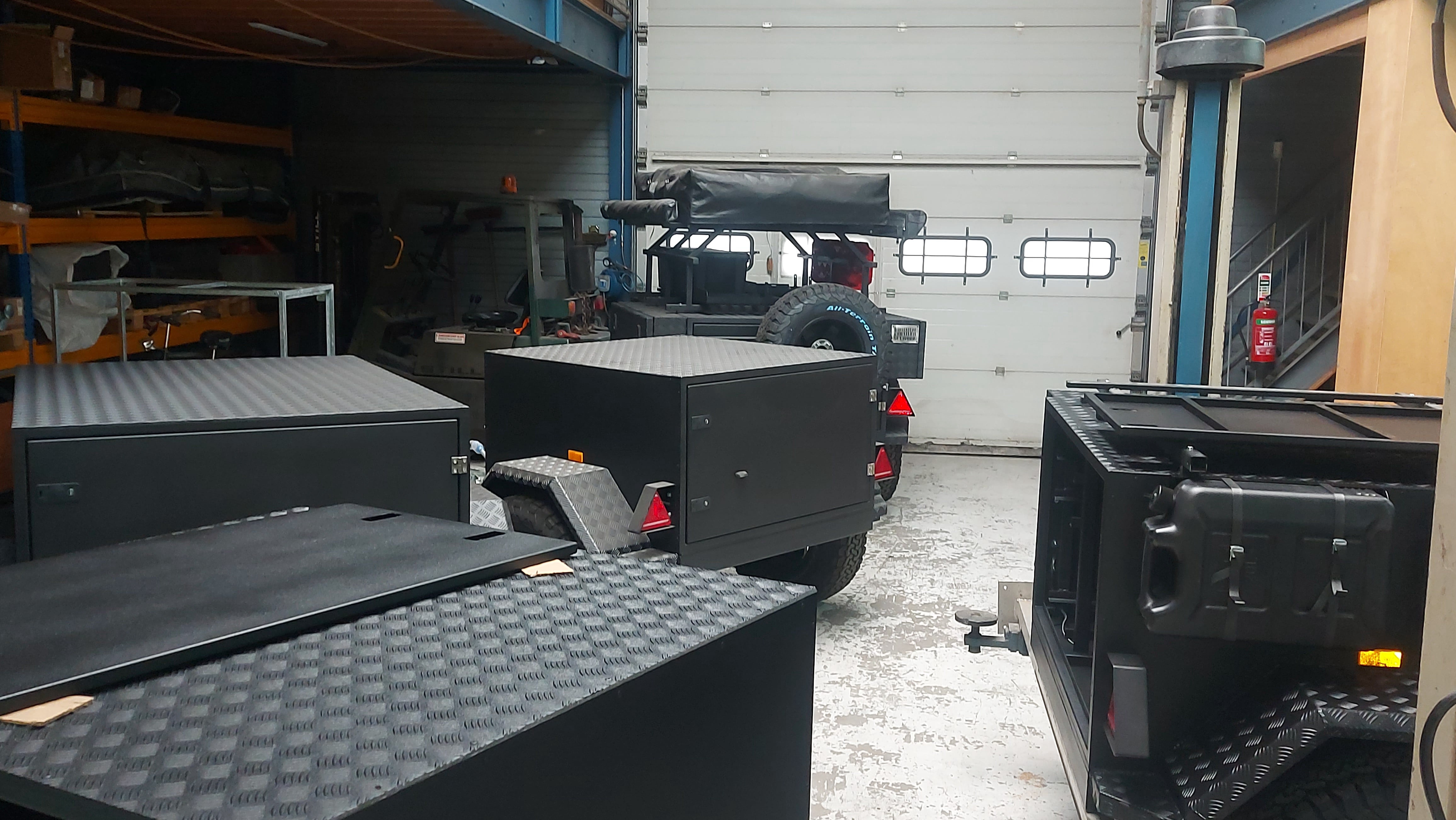

Step 3 now  in September 2015 we have started with the build of our first sample trailer. Working closely with our suppliers. We by our parts worldwide, we assemble in the Netherlands.
Step 4 get it road legal, pass the Dutch and Germany road safety legislation and therefor allowing it to be road legal in Europe.
Step 5 Present the trailer to the public.

Sales will start in 2017 season.  Please follow our website for more updates.
Somewhere in the production proces of our sample trailer we decided that the layout and design was not what we had expected. We found out that the therie and practice is a different game. So far in the production we decided to stop. Strip the sample trailer and do a complete redesign. So we are now on our model 16. With a major new layout, other chassis other setup.

Due to the regulations to use big tires we have had to change the axle and breaking system. Which will force to change the chassis jet again. But as we want to deliver a save and roadworthy trailer we will change this off course.


Marc Burgers
THE DESIGN.....
TRAILER

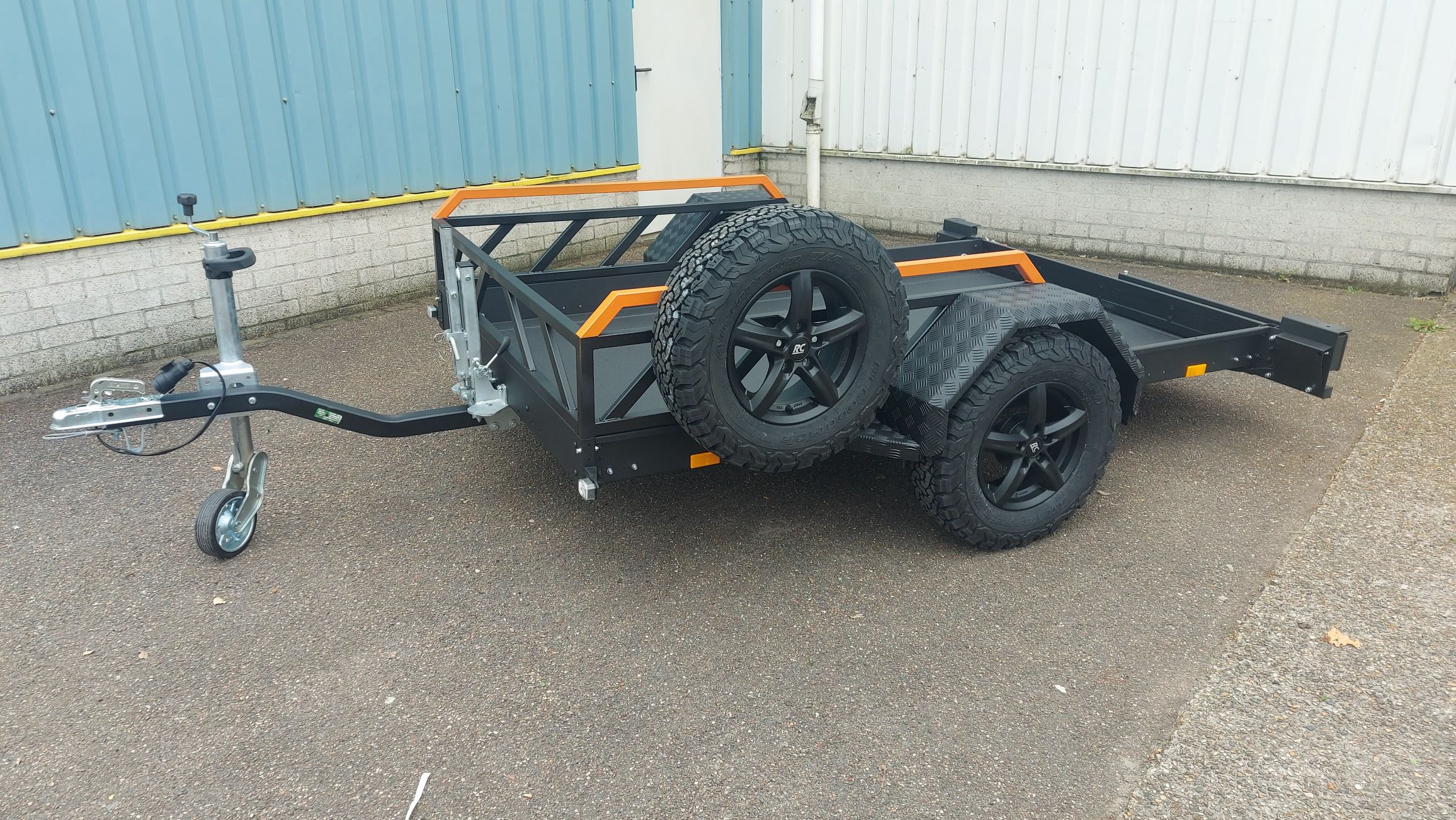

Heavy duty off road galvanized chassis frame with one straight tube from front to back with the same size tube
Side protection with 5 bar chequer plate
Fenders  in 5 bar chequer plate
5 bar chequer plate stone guard
Zinc-coated steel plate trailer body then baked enamel
Knott axle with mechanical braking system, shock absorbers and Knott draw-bar. (100km/h)
Fix up and down sliding type jockey wheel
Four fix up and down sliding type stabilizer legs and clamps
16’’ alloy 5-stud rims and LT265/75R16 off road tyres.

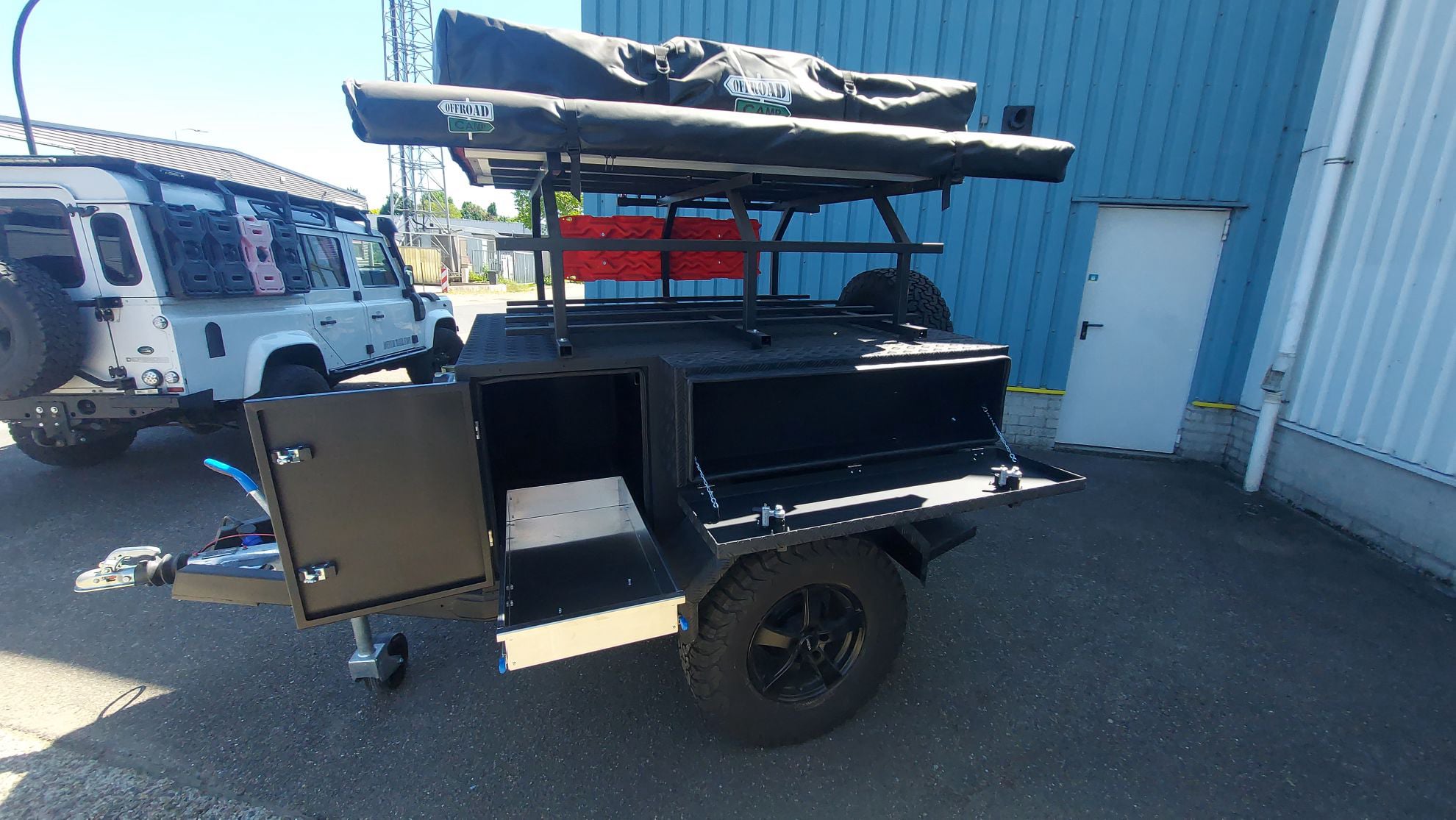

Kitchen Deluxe slide out stainless steel kitchen with drawers to fit  DOMETIC combination unit.
In trailer 65L stainless steel water tank.
Lockable stainless steel water filler

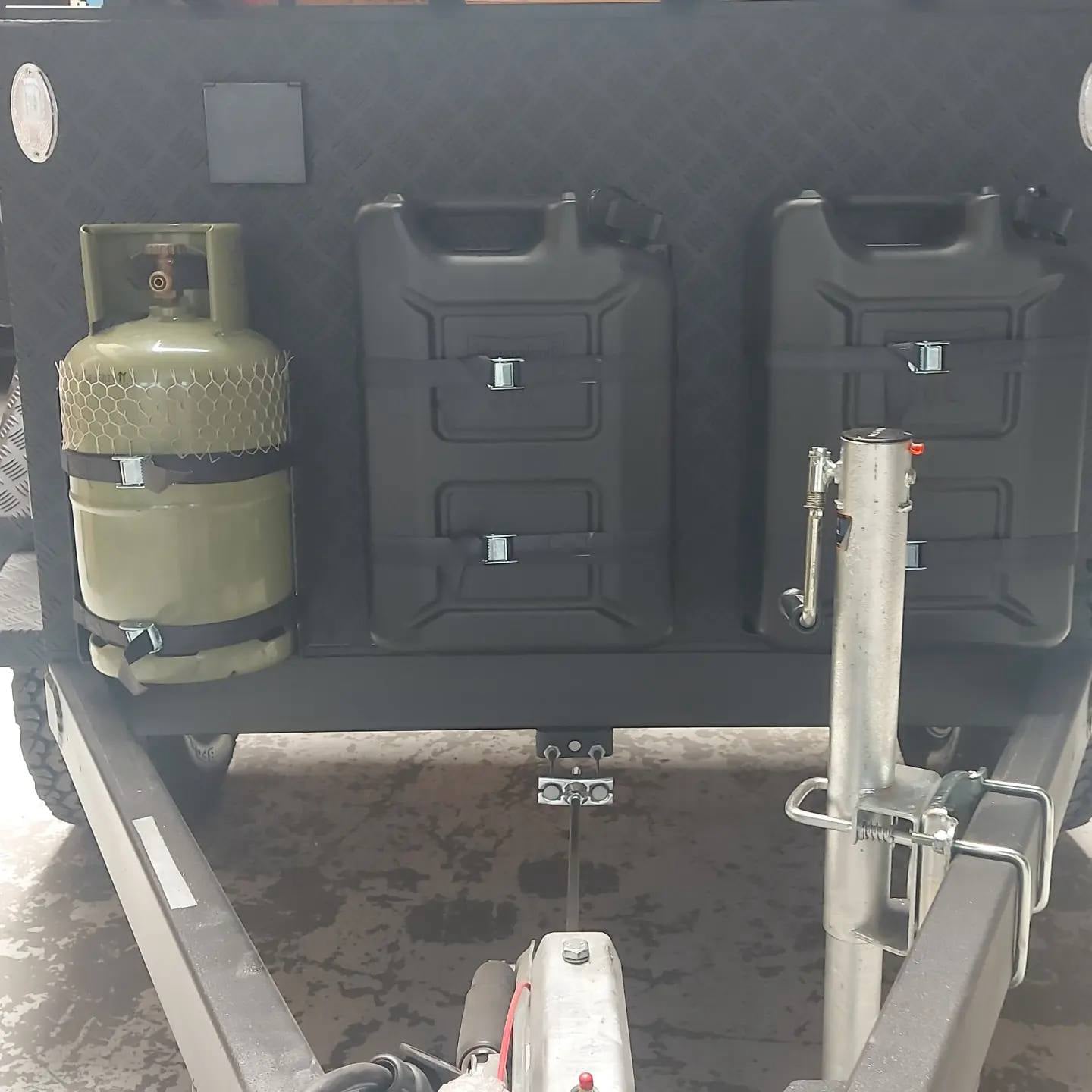

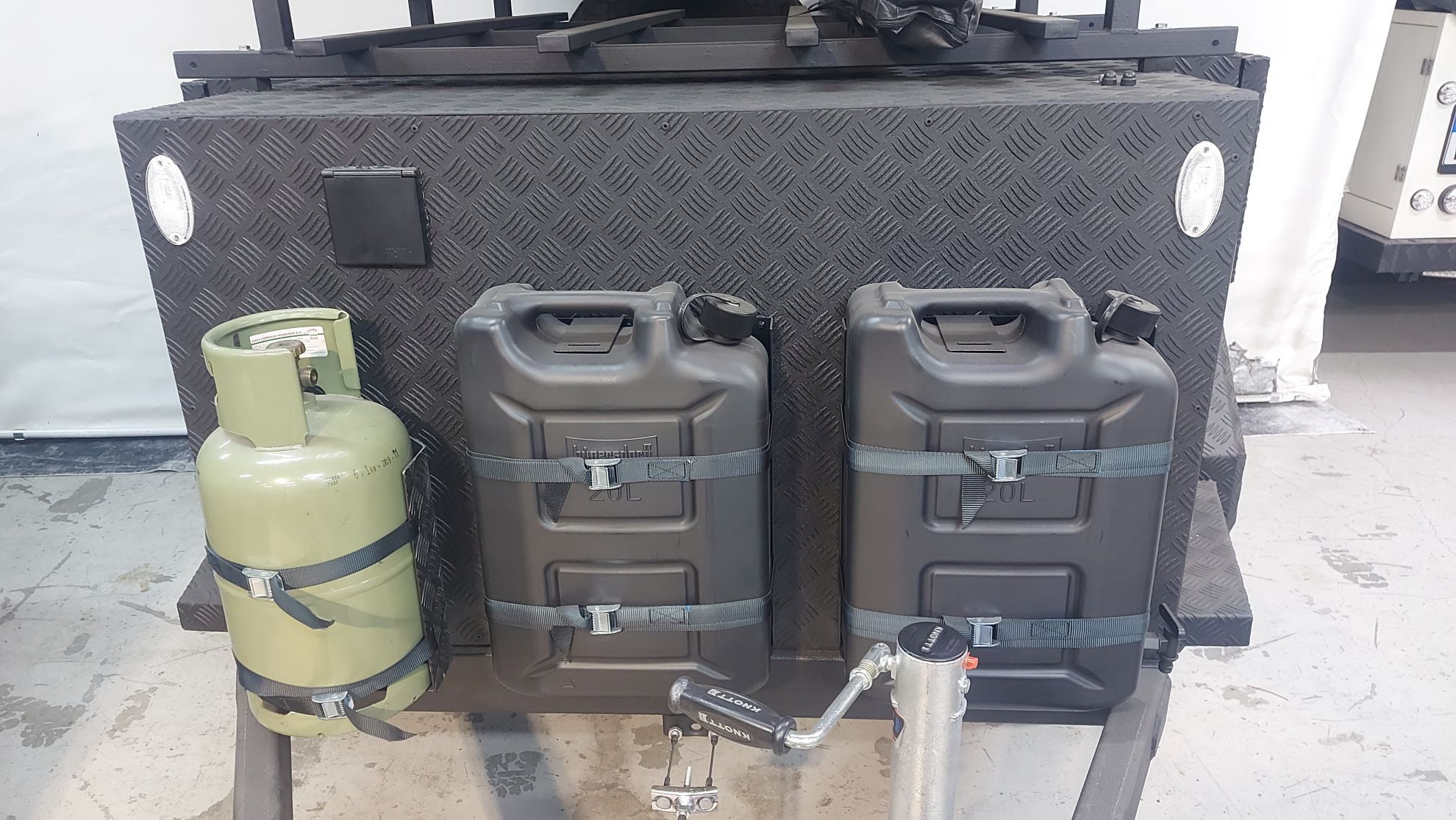

1 x jerry can holder and 1 x gas bottle holder inside.
Drawer for fridge

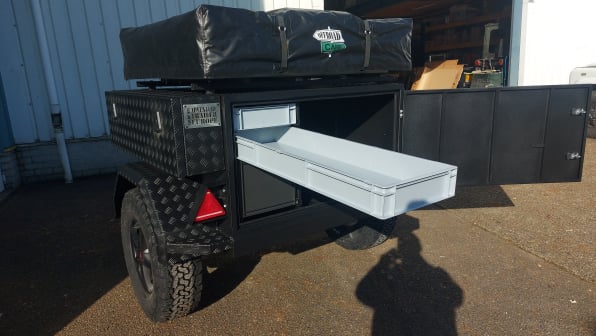

Full lenght luggage drawer in the rear compartment,
drawers and compartments for food, bags and clothes, and storage for tent poles.

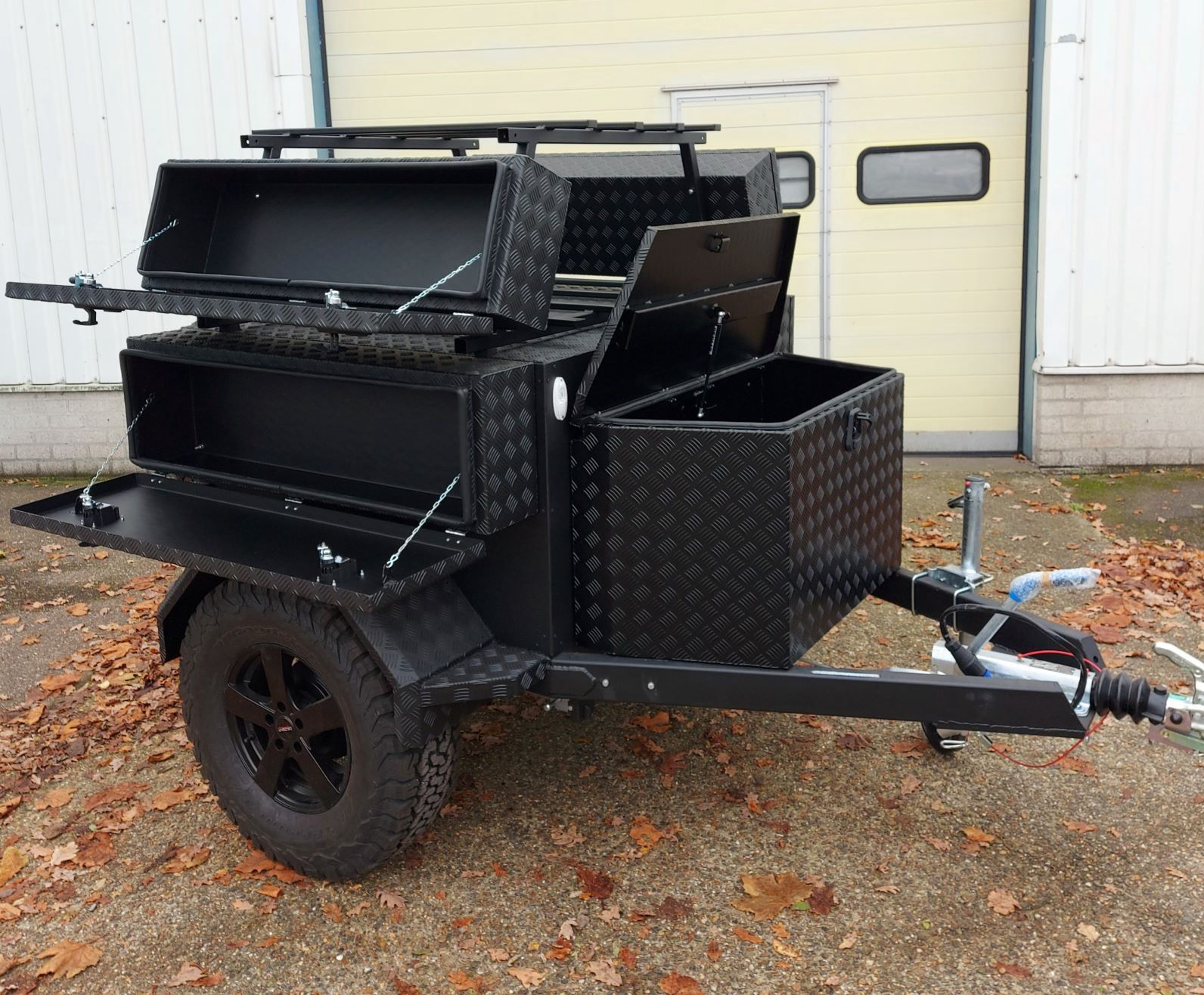

All storage compartments are closable and lockable.
ELECTRICS

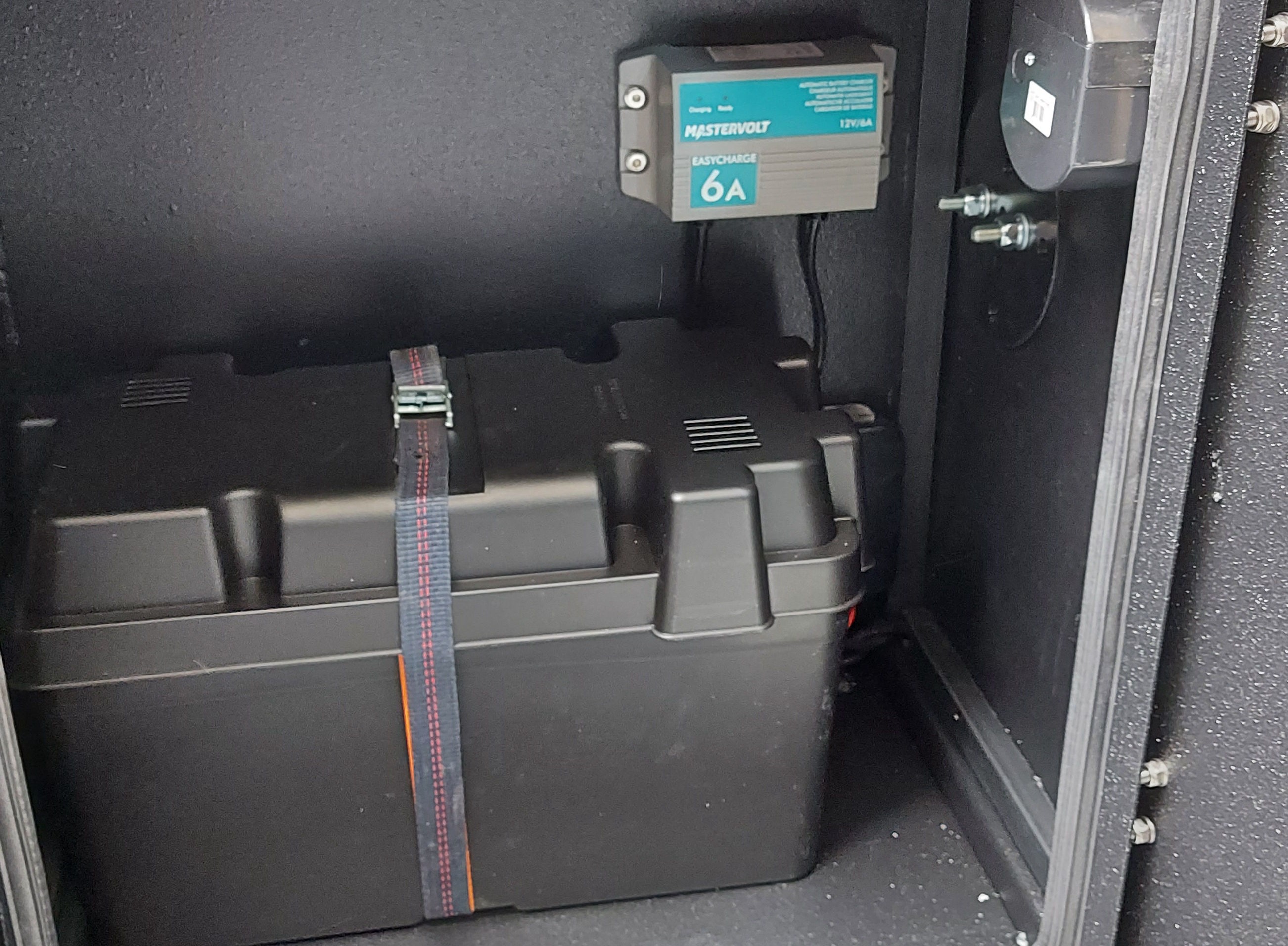

Deep cycle battery (100A/H)
Anderson plug for battery charging from the tow vehicle
7 pin round plug for lights
12V water pump to pump water to kitchen tap
Internal LED stripes with switches and cigarette sockets
Additional LED kitchen light
Modern design LED tail lights
LED number plate light
Overload protection
Water sensor and voltage meter
1000w inverter (optional more)
Solar power control panel (OPTIONAL solar power board)

TENT

14OZ canvas, double stitched and extra water proof
Midge mesh screens and windows
Flipover easy setup
One queen size bed with high quality mattress
Inside ladder
One sleep/living room with PE floor Tent
Fully enclosed annex kitchen/living room with awning and side walls
Galvanized awning poles, pegs and ropes
Tent color is Grey
Colors...
Ralcode:RAL 9010
Hexadecimaal:#FFFFFF
RBG:255-255-255
Name in
Dutch:Zuiverwit
English:Pure white
German:Reinweiß
Spanish:Blanco puro
French:Blanc pur
Italian:Bianco puro
Ralcode:RAL 6003
Hexadecimaal:#424632
RBG:066-070-050
Name in
Dutch:Olijfgroen
English:Olive green
German:Olivgrün
Spanish:Verde oliva
French:Vert olive
Italian:Verde oliva
Ralcode:RAL 1002
Hexadecimaal:#C6A664
RBG:198-166-100
Name in
Dutch:Zandgeel
English:Sand yellow
German:Sandgelb
Spanish:Amarillo arena
French:Jaune sable
Italian:Giallo sabbia
Ralcode:RAL 7016
Hexadecimaal:#293133
RBG:041-049-051
Name in
Dutch:Antracietgrijs
English:Anthracite grey
German:Anthrazitgrau
Spanish:Gris antracita
French:Gris anthracite
Italian:Grigio antracite
Please note: RAL colors on this website may be different from real color. Use color only as reference. No rights can be taken from these color samples!
Status update...
SPECIFICATIONS..
Due to legislation in Germany on the Roadworthy test the axle tire combination used did not comply with German requirement. After changing the AL-KO axle to a KNOTT axle with an 1800KG rating. The Axle Tire combination got approved. This axle however has other dimensions meaning the chassis has to be altered. For the sample trailer this is not an issue. However on future trailers there has to be an wider chassis.
At the moment the sample trailer has received a German license registration with a 100 km/h rating.
So now it is time to do some road and offroad testing to see how it is behaving when towed.
